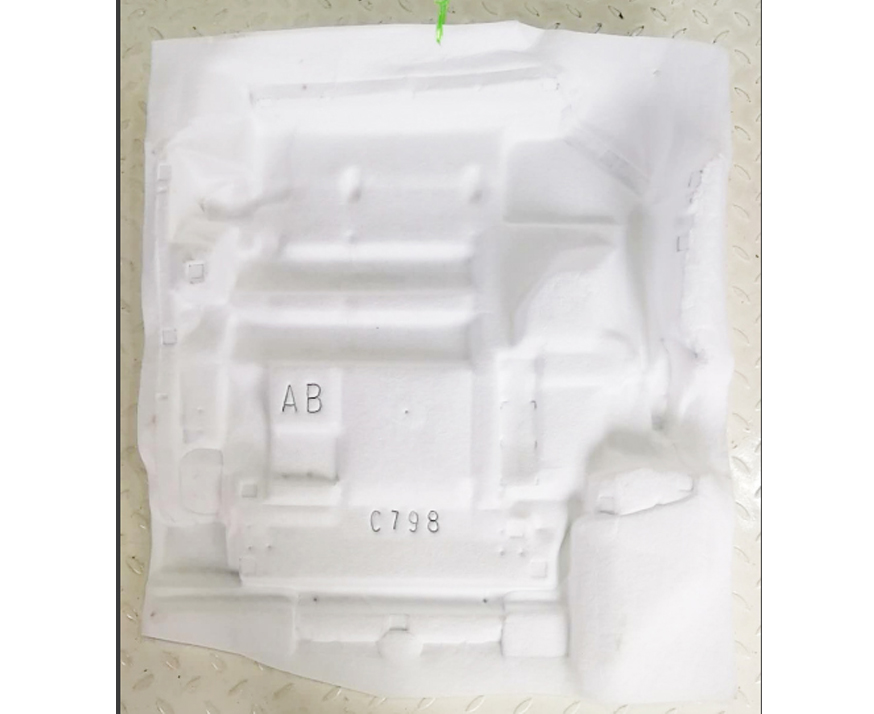

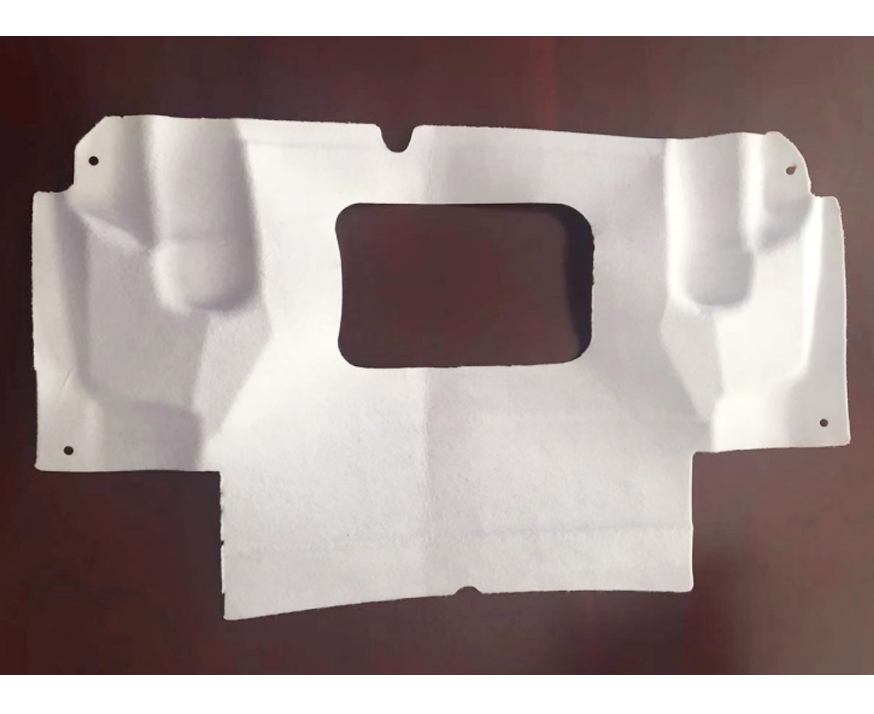

Automotive seat non-woven fabric forming machine

1、 Overview:

Features: YZ 2A-10170 high-efficiency programmable plastic pressure thermoforming machine, customized according to customer non-standard requirements, using new plastic sheet forming technology, integrated design of machine, electricity, and gas, using microcomputer and industrial control programmable PLC control, and the entire system HMI (human-machine interface). Square tunnel type imported radiant heater, both concave and convex molds can be molded. A plastic sheet forming equipment that completes pulling, heating, forming, cutting, and stacking in one go. A streamlined production line dedicated to hot forming, product hot forming, and automatic punching, with reduced manual labor, convenient operation, improved production efficiency, strong reliability, and high degree of automation.

2、 Process flow:

Loading - Heating - Forming - Cutting - Decomposing and Stacking System (a total of five workstations production line, operation plan: manual/automatic integrated switching applicable, manual for easy sampling control and parameter setting)

Technical parameters (1700mmL × 1000mmW × 300mmH)

1. Forming area: 1700mm × 1000mm

2. Molding height: 300mm

3. Production cycle: 6-20 sheets per minute

4. Compressed air source: 1 "(0.6-0.8Mpa)

5. Product material thickness: 0.1~6.0mm roll (depending on the material)

6. Power supply voltage: 380V-50HZ-3PH

7. Equipment total power: 120KW (normal operating power: 50-60KW)

8. Product materials: ABS, PC, PS, PP, PE, PVC, PMMA, etc

9. Equipment dimensions approximately: 12000mm in length, 2500mm in width, and 2200mm in height (for reference only)

10. Total weight (excluding mold): 12.5T (reference)
