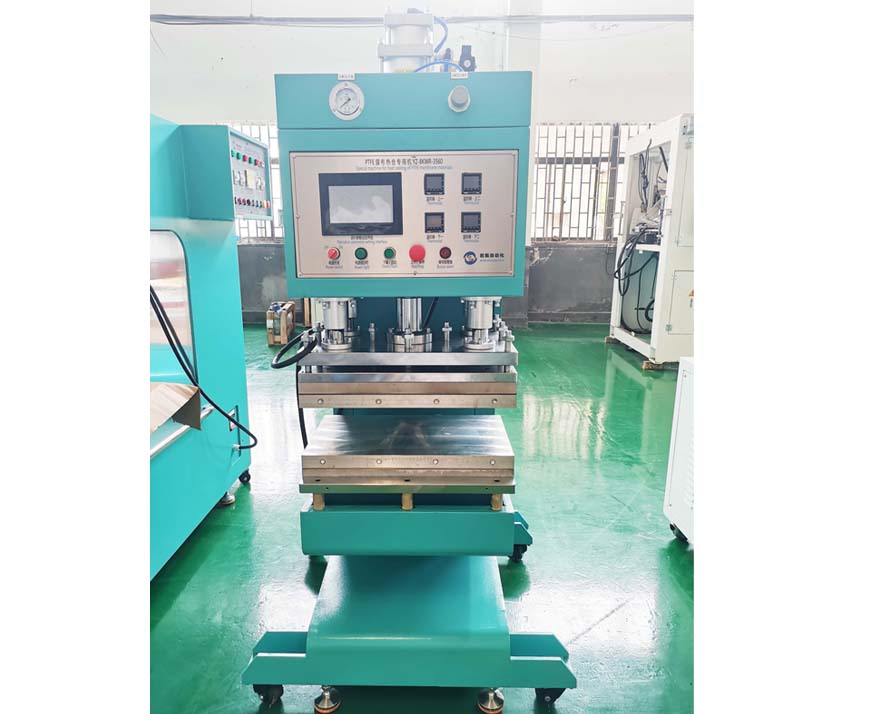

PTFE film welding machine

Scope of application: Used for heat sealing welding of PTFE/FEP film fabric materials.

Equipment features:

1. Equipment power: 8KW/Equipment main control PLC control system.

2. The upper and lower parts of the mold are 350 * 600mm, and the material is imported aviation aluminum processing.

3. The distance from the center of the mold head to the rear arm edge is 325mm.

4. The height of the lower heating plate plane to the ground is 800mm-810mm

5. Temperature control: Equipped with 4 sets of Omron digital temperature controllers and imported brands of mold head heating tubes, it has a long service life. Four lines above and below, with a temperature error of about 5 degrees. The temperature control range is 0-450 degrees

6. Pressure system: adopts a pressurized power 3-8T adjustable, with a frame structure steel plate thickness of 25mm
